# Netflix Prize

- 1 million USD to any one that can improve Netflix's rating algorithm...

---
# Netflix Prize

- 1 million USD to any one that can improve Netflix's rating algorithm **by 10%**

---
# Netflix Prize

- **The winning team:**

---
# Netflix Prize

- **The winning team:** BellKor's Pragmatic Chaos, used **ensemble models**"

---
# Netflix Prize

- **The winning team:** BellKor's Pragmatic Chaos, used **ensemble models**"

- **The second-place team's name** is...

---
# Netflix Prize

- **The winning team:** BellKor's Pragmatic Chaos, used **ensemble models**"

- **The second-place team's name** is "The Ensemble"

---
# Netflix Prize

- "During the nearly 3 years of the Netflix competition, there were two main factors which improved the
overall accuracy:

- The quality of the individual algorithms, and
  - the **ensemble idea**"

---
# Ensemble Success

> "XGBoost (an ensemble algorithm) is an algorithm that has recently been dominating applied machine learning and Kaggle competitions for structured or tabular data." [Link](https://machinelearningmastery.com/gentle-introduction-xgboost-applied-machine-learning/)

- List of machine learning winning solutions with XGBoost : https://github.com/dmlc/xgboost/tree/master/demo#machine-learning-challenge-winning-solutions

---
# Ensemble Success

> Adaboost (an ensemble algorithm) won 2003 **Godel Prize**: AdaBoost demonstrated novel possibilities in analysing data and is a permanent contribution to science even beyond computer science. [Link](http://eatcs.org/index.php/component/content/article/505)

---
# Ensemble Success

>AdaBoost (with decision trees as the weak learners) is often referred to as the best out-of-the-box classifier.  [Link](https://en.wikipedia.org/wiki/AdaBoost)

---
# Ensemble Success

> Leo Brieman, who invented "Bagging" and "Random Forest" crowned AdaBoost the "best off-the-shelf classifier in the world (2000).

---
# Ensemble Machine Learning Approach

- An ensemble is a composite model, combining a series of low performing **classifiers**(classification models) or **learners** with the aim of creating an improved classifier.

---
# Ensemble Machine Learning Approach

- An ensemble is a composite model, combining a series of low performing **classifiers**(classification models) or **learners** with the aim of creating an improved classifier.

- Three common ensemble:

- Stacking
    - Bagging
    - Boosting

---

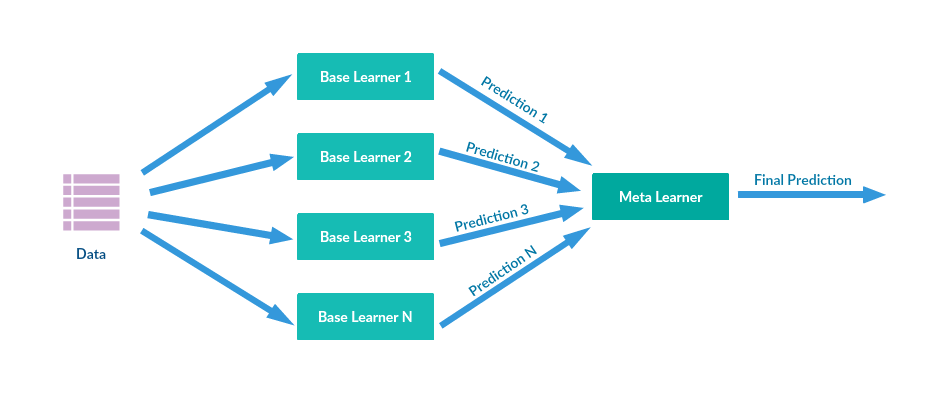

# Stacking

- Stacking combines multiple base learners  predictions into a new data set.

- This new data are treated as the **input data** for another learner (meta learner).

![](images/b3.png)

---
# Bagging  = Bootstrap Aggregating

.pull-left[

- Step 1:  Boostrapping

]

.pull-right[
<img src="images/ba1.png" width="481" height="500px" />
]

---
# Bagging = Bootstrap Aggregating

.pull-left[

- Step 2: Aggregating

]

.pull-right[
<img src="images/ba2.png" width="573" height="500px" />
]

---
# Boosting

.pull-left[

- Weak learners are sequentially converted into a strong learner.

]

.pull-right[
<img src="images/bo1.png" width="2065" />
]

---
# Boosting

.pull-left[

- Weak learners are sequentially converted into a strong learner.

- Each leaner in the sequence tries to correct its predecessor.

]

.pull-right[
<img src="images/bo1.png" width="2065" />
]

---
# Boosting

.pull-left[

- Weak learners are sequentially converted into a strong learner.

- Each leaner in the sequence tries to correct its predecessor.

- Individually, Learn 1, Learner 2 and Learner 3 are **weak leaners** (a little better than a coin toss).

]

.pull-right[
<img src="images/bo1.png" width="2065" />
]

---
# Boosting

.pull-left[

- Weak learners are sequentially converted into a strong learner.

- Each leaner in the sequence tries to correct its predecessor.

- Individually, Learn 1, Learner 2 and Learner 3 are **weak leaners** (a little better than a coin toss).

- The learners are usually a tree with 2 leaves (**Stump**).

]

.pull-right[
<img src="images/bo1.png" width="2065" />
]

---
# Boosting

.pull-left[

- Weak learners are sequentially converted into a strong learner.

- Each leaner in the sequence tries to correct its predecessor.

- Individually, Learn 1, Learner 2 and Learner 3 are **weak leaners** (a little better than a coin toss).

- The learners are usually a tree with 2 leaves (**Stump**).

- In D2, the wrong misclassified of Learner 1 gets higher weights.

- In D3, the wrong misclassified of Learner 2 gets higher weights.
]

.pull-right[
<img src="images/bo1.png" width="2065" />
]

---

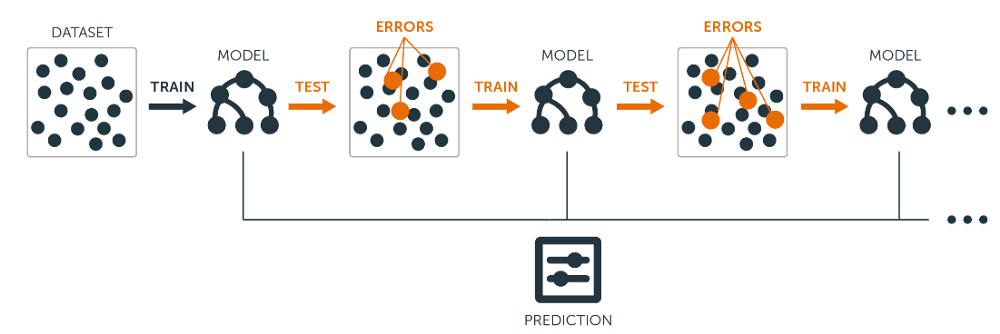

# Boosting

![](images/bo3.png)

---

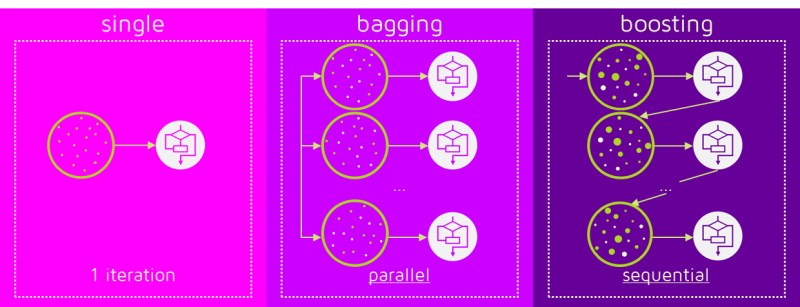

# Bagging vs. Boosting

![](images/b1.png)

---
# Bagging vs. Boosting

![](images/b2.png)

---
# Types of Boosting

- Adaboost

- Gradient Boosting

---

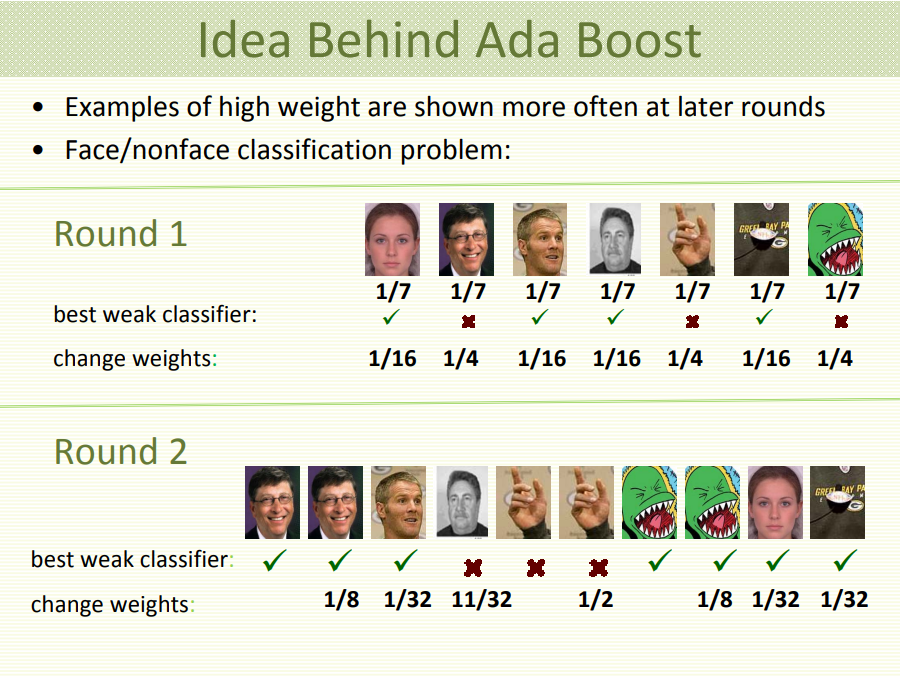

# Adaboost

![](images/bo4.png)

---

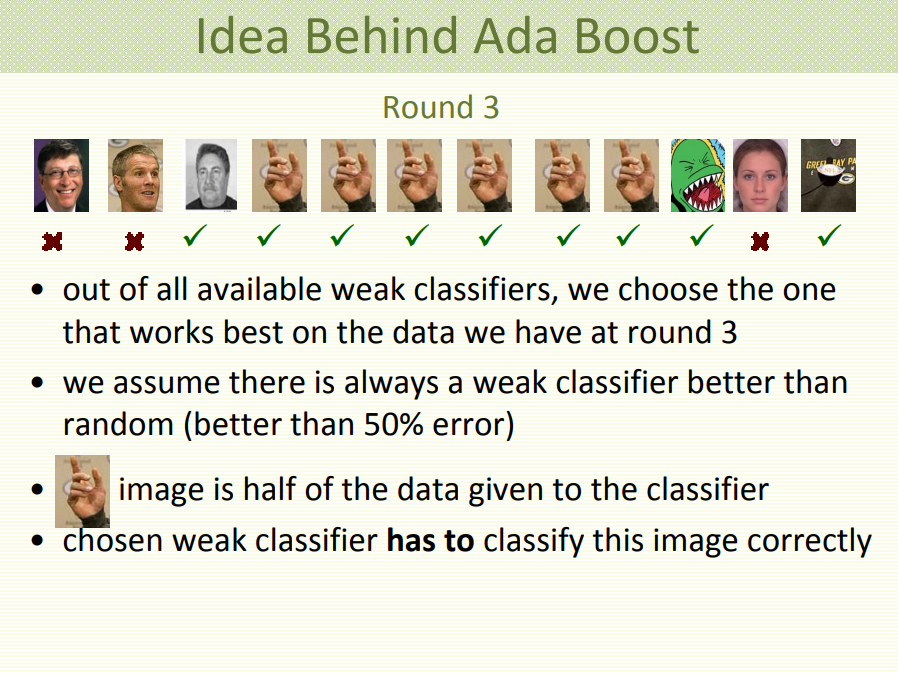

# Adaboost

![](images/bo5.png)

---
# Adaboost, Clearly Explained

- Demonstration by StatQuest
- [Link](https://www.youtube.com/watch?v=LsK-xG1cLYA)
