# Adaboost

![](images/bo4.png)

---
# Adaboost

![](images/bo5.png)

---
# Adaboost, Clearly Explained

- Demonstration by StatQuest
- [Link](https://www.youtube.com/watch?v=LsK-xG1cLYA)

---
# Calculation Example

Data

.pull-left[

| `$x_1$` | `$x_2$` | y  |
|----|----|----|
| 1  | 1  | 1  |
| 1  | 3  | 1  |
| 2  | 2  | -1 |
| 2  | 4  | 1  |
| 3  | 1  | -1 |
| 3  | 2  | -1 |
| 3  | 5  | 1  |
| 4  | 4  | 1  |
| 5  | 2  | -1 |
| 5  | 5  | -1 |

]

.pull-right[

]

---

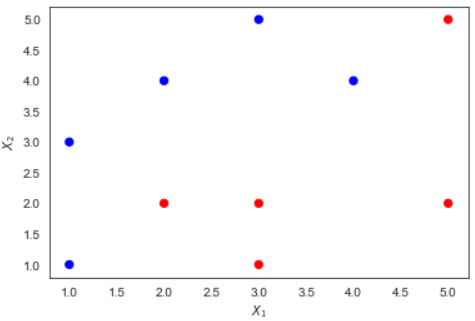

# Calculation Example

Data

.pull-left[

]

.pull-right[
![](data.png)
]

---
# Adaboost in a nutshell

---

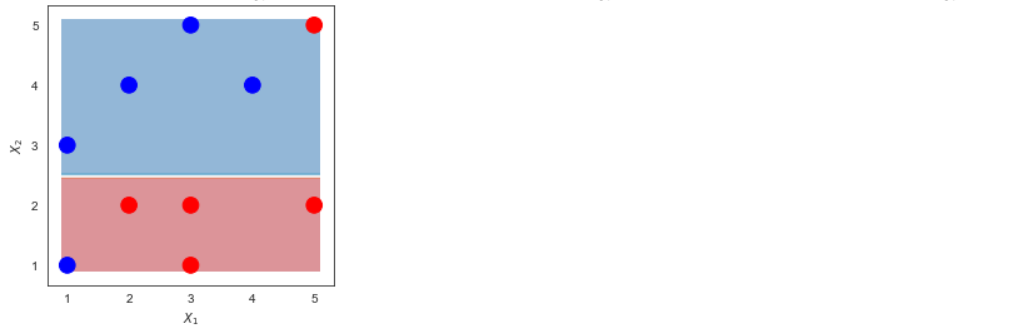

# Make Stump 1

![](db_stumps1.png)

---

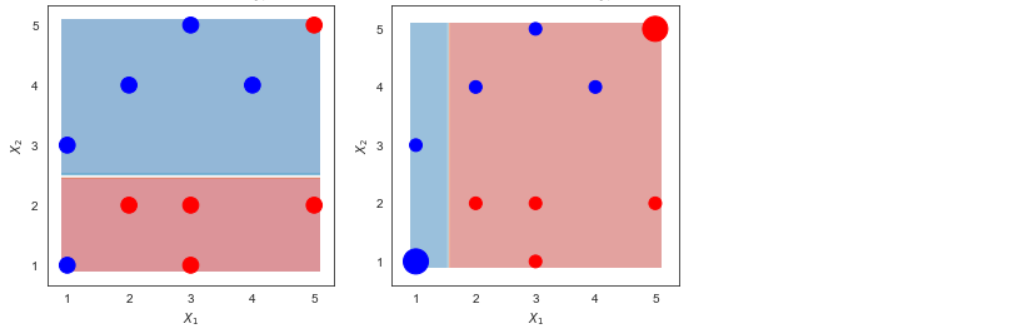

# Make Stump 2

![](db_stumps2.png)

---

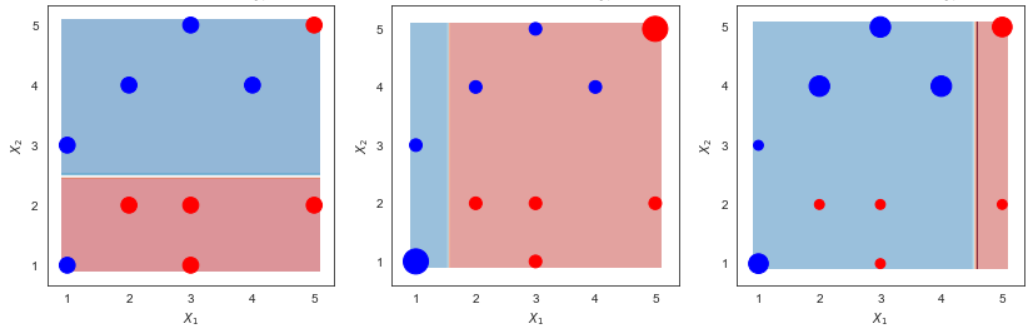

# Make Stump 3

![](db_stumps.png)

---
# Combine the Stumps

![](final_model.png)

---
class: inverse, center, middle

# Detail Calculation

---
# Make the first stump

.pull-left[

]

.pull-right[

|Row |   x1 |   x2 |   y |
|----|------|------|-----|
|  0 |    1 |    1 |   1 |
|  1 |    1 |    3 |   1 |
|  2 |    2 |    2 |  -1 |
|  3 |    2 |    4 |   1 |
|  4 |    3 |    1 |  -1 |
|  5 |    3 |    2 |  -1 |
|  6 |    3 |    5 |   1 |
|  7 |    4 |    4 |   1 |
|  8 |    5 |    2 |  -1 |
|  9 |    5 |    5 |  -1 |

]

---
# Make the first stump

.pull-left[

- Assign weights for each row
- Every row has the same weight in the first step

]

.pull-right[

---
# Make the first stump

.pull-left[

- Assign weights for each row

- Every row has the same weight in the first step

]

.pull-right[

|Row |   x1 |   x2 |   y |  Weight 1  |
|----|------|------|-----|------------|
|  0 |    1 |    1 |   1 |        0.1 |
|  1 |    1 |    3 |   1 |        0.1 |
|  2 |    2 |    2 |  -1 |        0.1 |
|  3 |    2 |    4 |   1 |        0.1 |
|  4 |    3 |    1 |  -1 |        0.1 |
|  5 |    3 |    2 |  -1 |        0.1 |
|  6 |    3 |    5 |   1 |        0.1 |
|  7 |    4 |    4 |   1 |        0.1 |
|  8 |    5 |    2 |  -1 |        0.1 |
|  9 |    5 |    5 |  -1 |        0.1 |

]

---
# Make the first stump

.pull-left[

- Use Weighted Gini-Index to calculate the children entropy of all candidate splits

]

.pull-right[

---
# Make the first stump

.pull-left[

- Use Weighted Gini-Index to calculate the children entropy of all candidate splits

- The split with the lowest children impurity is the best split

]

.pull-right[

---
# Make the first stump

.pull-left[

- Use Weighted Gini-Index to calculate the children entropy of all candidate splits

- The split with the lowest children impurity is the best split

- **NOTE**: You are not required to make the stump. So the stump will be given to you!
]

.pull-right[

---
# Make the first stump

.pull-left[

- Use Weighted Gini-Index to calculate the children entropy of all candidate splits

- The split with the lowest children impurity is the best split

- **NOTE**: You are not required to make the stump. So the stump will be given to you!

- Here is the first stump
]

.pull-right[
![](stump1.png)
]

---
# Make the first stump

.pull-left[

- **Stump 1**: `$I(x_2>2.5)$`

]

.pull-right[
![](stump1.png)
]

---
# Prediction of Stump 1

.pull-left[

- **Stump 1**: `$$I(x_2>2.5)$$`

- If `$x_2 > 2.5$`, predicts `$y=1$`.

- Otherwise, predicts `$y=-1$`

]

.pull-right[
| Row | x1 | x2 | y  | Stump 1 Predicts |
|-----|----|----|----|------------------|
| 0   | 1  | 1  | 1  | -1               |
| 1   | 1  | 3  | 1  | 1                |
| 2   | 2  | 2  | -1 | -1               |
| 3   | 2  | 4  | 1  | 1                |
| 4   | 3  | 1  | -1 | -1               |
| 5   | 3  | 2  | -1 | -1               |
| 6   | 3  | 5  | 1  | 1                |
| 7   | 4  | 4  | 1  | 1                |
| 8   | 5  | 2  | -1 | -1               |
| 9   | 5  | 5  | -1 | 1                |
]

---
# Error of the first stump

|Row | x1 | x2 | y  | Stump 1 Predicts | Weight 1 |
|---|----|----|----|-------------------------|-----------------|
| 0 | 1  | 1  | 1  | -1                      | 0.1             |<-
| 1 | 1  | 3  | 1  | 1                       | 0.1             |
| 2 | 2  | 2  | -1 | -1                      | 0.1             |
| 3 | 2  | 4  | 1  | 1                       | 0.1             |
| 4 | 3  | 1  | -1 | -1                      | 0.1             |
| 5 | 3  | 2  | -1 | -1                      | 0.1             |
| 6 | 3  | 5  | 1  | 1                       | 0.1             |
| 7 | 4  | 4  | 1  | 1                       | 0.1             |
| 8 | 5  | 2  | -1 | -1                      | 0.1             |
| 9 | 5  | 5  | -1 | 1                       | 0.1             |<-

---
# Error of the first stump

.pull-left[

- Stump 1 has 2 misclassifications at row 0 and 9 (The predictions are NOT the same as the `$y$` values). The total weights of these rows are: `$$\epsilon_1 = 0.1 + 0.1 = 0.2$$`
]

.pull-right[
|Row | x1 | x2 | y  | Stump 1 Predicts | Weight 1 |
|---|----|----|----|-------------------------|-----------------|
| 0 | 1  | 1  | 1  | -1                      | 0.1             |<-
| 1 | 1  | 3  | 1  | 1                       | 0.1             |
| 2 | 2  | 2  | -1 | -1                      | 0.1             |
| 3 | 2  | 4  | 1  | 1                       | 0.1             |
| 4 | 3  | 1  | -1 | -1                      | 0.1             |
| 5 | 3  | 2  | -1 | -1                      | 0.1             |
| 6 | 3  | 5  | 1  | 1                       | 0.1             |
| 7 | 4  | 4  | 1  | 1                       | 0.1             |
| 8 | 5  | 2  | -1 | -1                      | 0.1             |
| 9 | 5  | 5  | -1 | 1                       | 0.1             |<-
]

---
# Voting Power of the first Stump

.pull-left[

- Stump 1 has 2 misclassifications at row 0 and 9 (The predictions are NOT the same as the `$y$` values). The total weights of these rows are: `$$\epsilon_1 = 0.1 + 0.1 = 0.2$$`

- Voting Power: (L is the learning rate. `$L = 1$` in this example 1)

`$$\alpha_{1} = L \cdot \frac{1}{2} \cdot \ln(\frac{1-\epsilon_{1}}{\epsilon_{1}}) = 0.693$$`
]

---
# Calculating the new weights

.pull-left[

- For misclassified rows 0 and 9:

`$$w_{new} =   w_{old} \cdot e^{\alpha}  = 0.1\cdot e^{0.693}= 0.2$$`
- For the correctly classified rows:

`$$w_{new} =  w_{old} \cdot e^{-\alpha} = 0.1\cdot e^{-0.693} = .05$$`
]

.pull-right[

]

---
# Calculating the new weights

.pull-left[

- For misclassified rows 0 and 9:

`$$w_{new} =   w_{old} \cdot e^{\alpha}  = 0.1\cdot e^{0.693}= 0.2$$`
- For the correctly classified rows:

`$$w_{new} =  w_{old} \cdot e^{-\alpha} = 0.1\cdot e^{-0.693} = .05$$`
]

.pull-right[

| Row | x1 | x2 | y  | Stump 1 Predicts | Weight 1 | Weight 2 |
|-----|----|----|----|------------------|----------|----------|
| 0   | 1  | 1  | 1  | -1               | 0.1      | 0.2      |
| 1   | 1  | 3  | 1  | 1                | 0.1      | 0.05     |
| 2   | 2  | 2  | -1 | -1               | 0.1      | 0.05     |
| 3   | 2  | 4  | 1  | 1                | 0.1      | 0.05     |
| 4   | 3  | 1  | -1 | -1               | 0.1      | 0.05     |
| 5   | 3  | 2  | -1 | -1               | 0.1      | 0.05     |
| 6   | 3  | 5  | 1  | 1                | 0.1      | 0.05     |
| 7   | 4  | 4  | 1  | 1                | 0.1      | 0.05     |
| 8   | 5  | 2  | -1 | -1               | 0.1      | 0.05     |
| 9   | 5  | 5  | -1 | 1                | 0.1      | 0.2      |

]

---
# Calculating the new weights

.pull-left[

- For misclassified rows 0 and 9:

`$$w_{new} =   w_{old} \cdot e^{\alpha}  = 0.1\cdot e^{0.693}= 0.2$$`
- For the correctly classified rows:

`$$w_{new} =  w_{old} \cdot e^{-\alpha} = 0.1\cdot e^{-0.693} = .05$$`
- Notice how the weights increase for misclassified rows and decrease otherwise.

]

.pull-right[

]

---
# Calculating the new weights

.pull-left[

- The total weights has to be 1. We divide the weights by the total `$(.2*2+.05*8 = .8)$` to achieve this.

]

.pull-right[

]

---
# Calculating the new weights

.pull-left[

- The total weights has to be 1. We divide the weights by the total `$(.2*2+.05*8 = .8)$` to achieve this.

- Divide Weight 2 by 0.8

]

.pull-right[

]

---
# Calculating the new weights

.pull-left[

- The total weights has to be 1. We divide the weights by the total `$(.2*2+.05*8 = .8)$` to achieve this.

- Divide Weight 2 by 0.8

]

.pull-right[

|Row |   x1 |   x2 |   y |   Stump 1 Predicts  |   Weight 1 |   Weight 2  |
|----|------|------|-----|-----------|------------|------------|
|  0 |    1 |    1 |   1 |        -1 |        0.1 |     0.25   |
|  1 |    1 |    3 |   1 |         1 |        0.1 |     0.0625 |
|  2 |    2 |    2 |  -1 |        -1 |        0.1 |     0.0625 |
|  3 |    2 |    4 |   1 |         1 |        0.1 |     0.0625 |
|  4 |    3 |    1 |  -1 |        -1 |        0.1 |     0.0625 |
|  5 |    3 |    2 |  -1 |        -1 |        0.1 |     0.0625 |
|  6 |    3 |    5 |   1 |         1 |        0.1 |     0.0625 |
|  7 |    4 |    4 |   1 |         1 |        0.1 |     0.0625 |
|  8 |    5 |    2 |  -1 |        -1 |        0.1 |     0.0625 |
|  9 |    5 |    5 |  -1 |         1 |        0.1 |     0.25   |

]

---
class: center, inverse, middle

# Repeat the process to make the second Stump

---
# Data to make the second Stump

.pull-left[

]

.pull-right[

| Row | x1 | x2 | y  | Weight 2 |
|-----|----|----|----|----------|
| 0   | 1  | 1  | 1  | 0.25     |
| 1   | 1  | 3  | 1  | 0.0625   |
| 2   | 2  | 2  | -1 | 0.0625   |
| 3   | 2  | 4  | 1  | 0.0625   |
| 4   | 3  | 1  | -1 | 0.0625   |
| 5   | 3  | 2  | -1 | 0.0625   |
| 6   | 3  | 5  | 1  | 0.0625   |
| 7   | 4  | 4  | 1  | 0.0625   |
| 8   | 5  | 2  | -1 | 0.0625   |
| 9   | 5  | 5  | -1 | 0.25     |

]

---
# Make the second stump

.pull-left[

- Use Weighted Gini-Index to calculate the children entropy of all candidate splits
]

.pull-right[

]

---
# Make the second stump

.pull-left[

- Use Weighted Gini-Index to calculate the children entropy of all candidate splits

- The split with the lowest children impurity is the best split

]

.pull-right[

]

---

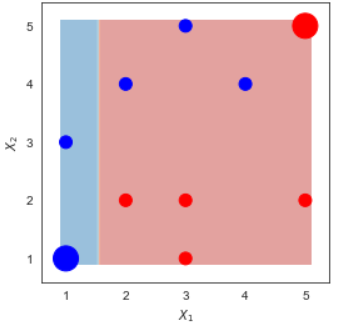

# Make the second stump

.pull-left[

- Use Weighted Gini-Index to calculate the children entropy of all candidate splits

- The split with the lowest children impurity is the best split
]

.pull-right[
![](stump2.png)
]

---
# Error of the second stump

|Row | x1 | x2 | y  | Stump 2 Predicts | Weight 2|
|---|----|----|----|-------------------------|----------------|
| 0 | 1  | 1  | 1  | 1                       | 0.25           |
| 1 | 1  | 3  | 1  | 1                       | 0.0625         |
| 2 | 2  | 2  | -1 | -1                      | 0.0625         |
| 3 | 2  | 4  | 1  | -1                      | 0.0625         |<-
| 4 | 3  | 1  | -1 | -1                      | 0.0625         |
| 5 | 3  | 2  | -1 | -1                      | 0.0625         |
| 6 | 3  | 5  | 1  | -1                      | 0.0625         |<-
| 7 | 4  | 4  | 1  | -1                      | 0.0625         |<-
| 8 | 5  | 2  | -1 | -1                      | 0.0625         |
| 9 | 5  | 5  | -1 | -1                      | 0.25           |

---
# Error of the second stump

.pull-left[

- Stump 2 has misclassifications at row 3, 6, and 7 (The predictions are NOT the same as the `$y$` values). The total weights of these rows are: 0.0625 + 0.0625 + 0.0625 = 0.1875

- Error of Stump 2: `$$\epsilon_2 = 0.1875$$`

- Voting Power:

`$$\alpha_{2} = L \cdot \frac{1}{2} \cdot \ln(\frac{1-\epsilon_{2}}{\epsilon_{2}}) = 0.733$$`
]

.pull-right[
|Row | x1 | x2 | y  | Stump 2 Predicts | Weight 2|
|---|----|----|----|-------------------------|----------------|
| 0 | 1  | 1  | 1  | 1                       | 0.25           |
| 1 | 1  | 3  | 1  | 1                       | 0.0625         |
| 2 | 2  | 2  | -1 | -1                      | 0.0625         |
| 3 | 2  | 4  | 1  | -1                      | 0.0625         |<-
| 4 | 3  | 1  | -1 | -1                      | 0.0625         |
| 5 | 3  | 2  | -1 | -1                      | 0.0625         |
| 6 | 3  | 5  | 1  | -1                      | 0.0625         |<-
| 7 | 4  | 4  | 1  | -1                      | 0.0625         |<-
| 8 | 5  | 2  | -1 | -1                      | 0.0625         |
| 9 | 5  | 5  | -1 | -1                      | 0.25           |

]

---
# Calculating the new weights

.pull-left[

- For misclassified rows 3, 6 and 7:

`$$w_{new} =   w_{old} \cdot e^{\alpha}$$`
- For the correctly classified rows:

`$$w_{new} =  w_{old} \cdot e^{-\alpha}$$`
]

.pull-right[

]

---
# Calculating the new weights

.pull-left[

- For misclassified rows 3, 6 and 7:

`$$w_{new} =   w_{old} \cdot e^{\alpha}$$`
- For the correctly classified rows:

`$$w_{new} =  w_{old} \cdot e^{-\alpha}$$`
]

.pull-right[

|Row | x1 | x2 | y  | Weight 2 | Stump 2 Predicts  | Weight 3         |
|---|----|----|----|----------------|-------------------------|---------|
| 0 | 1  | 1  | 1  | 0.25           | 1                       | 0.12012 |
| 1 | 1  | 3  | 1  | 0.0625         | 1                       | 0.03003 |
| 2 | 2  | 2  | -1 | 0.0625         | -1                      | 0.03003 |
| 3 | 2  | 4  | 1  | 0.0625         | -1                      | 0.13008 |
| 4 | 3  | 1  | -1 | 0.0625         | -1                      | 0.03003 |
| 5 | 3  | 2  | -1 | 0.0625         | -1                      | 0.03003 |
| 6 | 3  | 5  | 1  | 0.0625         | -1                      | 0.13008 |
| 7 | 4  | 4  | 1  | 0.0625         | -1                      | 0.13008 |
| 8 | 5  | 2  | -1 | 0.0625         | -1                      | 0.03003 |
| 9 | 5  | 5  | -1 | 0.25           | -1                      | 0.12012 |

]

---
# Normalize the new weights

- The total weights has to be 1. We divide Weight 3 by the total of current Weight 3, which is 0.780624761
 to achieve this.

|Row | x1 | x2 | y  | Weight 2 | Stump 2 Predicts  | Weight 3         |
|---|----|----|----|----------------|-------------------------|---------|
| 0 | 1  | 1  | 1  | 0.25           | 1                       | 0.15387 |
| 1 | 1  | 3  | 1  | 0.0625         | 1                       | 0.03847 |
| 2 | 2  | 2  | -1 | 0.0625         | -1                      | 0.03847 |
| 3 | 2  | 4  | 1  | 0.0625         | -1                      | 0.16664 |
| 4 | 3  | 1  | -1 | 0.0625         | -1                      | 0.03847 |
| 5 | 3  | 2  | -1 | 0.0625         | -1                      | 0.03847 |
| 6 | 3  | 5  | 1  | 0.0625         | -1                      | 0.16664 |
| 7 | 4  | 4  | 1  | 0.0625         | -1                      | 0.16664 |
| 8 | 5  | 2  | -1 | 0.0625         | -1                      | 0.03847 |
| 9 | 5  | 5  | -1 | 0.25           | -1                      | 0.15387 |

---
class: center, inverse, middle

# Repeat the process to make the third Stump

---
# Data to Make the third stump

.pull-left[

]

.pull-right[
| Row | x1 | x2 | y  | Weight 3 |
|-----|----|----|----|----------|
| 0   | 1  | 1  | 1  | 0.15387  |
| 1   | 1  | 3  | 1  | 0.03847  |
| 2   | 2  | 2  | -1 | 0.03847  |
| 3   | 2  | 4  | 1  | 0.16664  |
| 4   | 3  | 1  | -1 | 0.03847  |
| 5   | 3  | 2  | -1 | 0.03847  |
| 6   | 3  | 5  | 1  | 0.16664  |
| 7   | 4  | 4  | 1  | 0.16664  |
| 8   | 5  | 2  | -1 | 0.03847  |
| 9   | 5  | 5  | -1 | 0.15387  |
]

---
# Make the third stump

.pull-left[

- Use Weighted Gini-Index to calculate the children entropy of all candidate splits

]

---
# Make the third stump

.pull-left[

- Use Weighted Gini-Index to calculate the children entropy of all candidate splits

- The split with the lowest children impurity is the best split
]

]

---
# Make the third stump

.pull-left[

- Use Weighted Gini-Index to calculate the children entropy of all candidate splits

- The split with the lowest children impurity is the best split
]

.pull-right[
![](stump3.png)
]

---
# Error of the third stump

|Row | x1 | x2 | y  | Stump 3 Predicts | Weight 3 |
|---|----|----|----|-------------------------|-----------------|
| 0 | 1  | 1  | 1  | 1                       | 0.15385         |
| 1 | 1  | 3  | 1  | 1                       | 0.03846         |
| 2 | 2  | 2  | -1 | 1                       | 0.03846         |<-
| 3 | 2  | 4  | 1  | 1                       | 0.16667         |
| 4 | 3  | 1  | -1 | 1                       | 0.03846         |<-
| 5 | 3  | 2  | -1 | 1                       | 0.03846         |<-
| 6 | 3  | 5  | 1  | 1                       | 0.16667         |
| 7 | 4  | 4  | 1  | 1                       | 0.16667         |
| 8 | 5  | 2  | -1 | -1                      | 0.03846         |
| 9 | 5  | 5  | -1 | -1                      | 0.15385         |

---
# Error of the third stump

.pull-left[

- Stump 3 has misclassifications at row 2, 4, and 5 (The predictions are NOT the same as the `$y$` values). The total weights of these rows are: `$$\epsilon_3 = 0.03846 \cdot 3 = 0.11538$$`

- Voting Power:

`$$\alpha_{3} = L \cdot \frac{1}{2} \cdot \ln(\frac{1-\epsilon_{3}}{\epsilon_{3}}) = 1.018$$`
]

.pull-right[
|Row | x1 | x2 | y  | Stump 3 Predicts | Weight 3 |
|---|----|----|----|-------------------------|-----------------|
| 0 | 1  | 1  | 1  | 1                       | 0.15385         |
| 1 | 1  | 3  | 1  | 1                       | 0.03846         |
| 2 | 2  | 2  | -1 | 1                       | 0.03846         |<-
| 3 | 2  | 4  | 1  | 1                       | 0.16667         |
| 4 | 3  | 1  | -1 | 1                       | 0.03846         |<-
| 5 | 3  | 2  | -1 | 1                       | 0.03846         |<-
| 6 | 3  | 5  | 1  | 1                       | 0.16667         |
| 7 | 4  | 4  | 1  | 1                       | 0.16667         |
| 8 | 5  | 2  | -1 | -1                      | 0.03846         |
| 9 | 5  | 5  | -1 | -1                      | 0.15385         |
]

---
# Summarise the results

|  Row  |   x1 |   x2 |   y |   Stump 1 Predicts |   Weight 1|   Weight 2|   Stump 2 Predicts  |   Weight 3 |   Stump 3 Predicts |
|----|------|------|-----|-----------|------------|------------|-----------|------------|-----------|
|  0 |    1 |    1 |   1 |        -1 |        0.1 |     0.25   |         1 |  0.153846  |         1 |
|  1 |    1 |    3 |   1 |         1 |        0.1 |     0.0625 |         1 |  0.0384615 |         1 |
|  2 |    2 |    2 |  -1 |        -1 |        0.1 |     0.0625 |        -1 |  0.0384615 |         1 |
|  3 |    2 |    4 |   1 |         1 |        0.1 |     0.0625 |        -1 |  0.166667  |         1 |
|  4 |    3 |    1 |  -1 |        -1 |        0.1 |     0.0625 |        -1 |  0.0384615 |         1 |
|  5 |    3 |    2 |  -1 |        -1 |        0.1 |     0.0625 |        -1 |  0.0384615 |         1 |
|  6 |    3 |    5 |   1 |         1 |        0.1 |     0.0625 |        -1 |  0.166667  |         1 |
|  7 |    4 |    4 |   1 |         1 |        0.1 |     0.0625 |        -1 |  0.166667  |         1 |
|  8 |    5 |    2 |  -1 |        -1 |        0.1 |     0.0625 |        -1 |  0.0384615 |        -1 |
|  9 |    5 |    5 |  -1 |         1 |        0.1 |     0.25   |        -1 |  0.153846  |        -1 |

---
# Combining three Stumps

- Let say we stop making new stumps here.

- We will combine the three stumps to make the final model

![](db_stumps.png)

---
# Combining three Stumps

![](final_model.png)

---
# Learning rate
